Extract from page 651
Gothic or Pointed Arch
These arches consist of two curves meeting at the apex of a triangle. The centres from which the curves are struck may be on or below the springing line, and in between or outside the springing points
The curves for each half of the arch are set out by the same process as for the segmental arch
The voussoirs, terminate at the apex, and on the centre line with a straight joint. It is not uncommon to see these arches constructed with a key-brick bird’s-mouthed at the apex of the soffit, and the bed joints radiating to one centre. In this case the construction is wrong. Properly constructed, there should be no key brick
These arches consist of two curves meeting at the apex of a triangle. The centres from which the curves are struck may be on or below the springing line, and in between or outside the springing points
Equilateral or Gothic arch
Fig. 55 - Volume 14, page 650
In the two examples shown, the centres are on the springing line. In the Equilateral arch they are on the springing points, and in the Lancet arch, they are outside these pointsFig. 55 - Volume 14, page 650

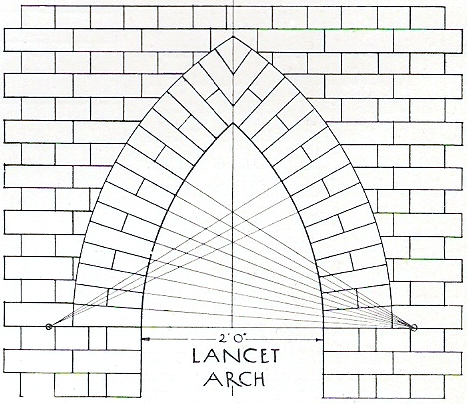

Isoceles or Lancet arch
Fig. 56 - Volume 14, page 650
Where the rise of the arch is less than the span, the centres will be below the springing line, a distance that can be varied to suit any required curveFig. 56 - Volume 14, page 650
The curves for each half of the arch are set out by the same process as for the segmental arch
The voussoirs, terminate at the apex, and on the centre line with a straight joint. It is not uncommon to see these arches constructed with a key-brick bird’s-mouthed at the apex of the soffit, and the bed joints radiating to one centre. In this case the construction is wrong. Properly constructed, there should be no key brick
